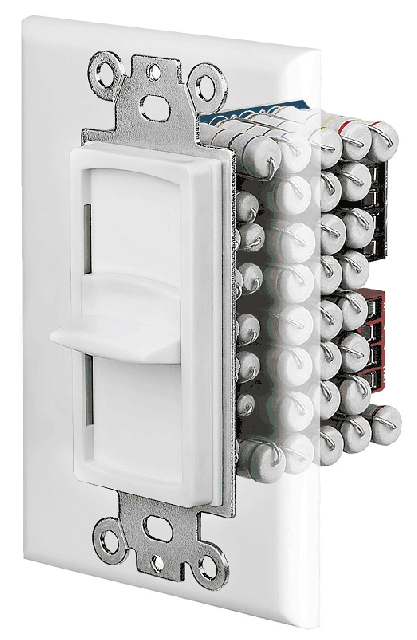

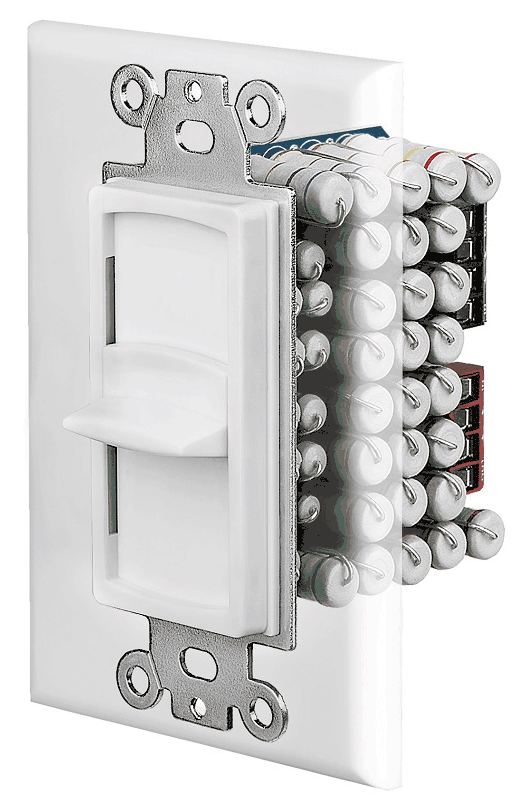

SKU: SKR-120 OSD SKR120 Resistor Based Slider In-Wall Volume Control 150W, White, Almond, Bone
New to our Hi-Definition resistor base volume control family, the SKR120 slide volume controls are often used with multi-channel amplifiers and impedance-matching speaker selectors. This is not an impedance matching volume control and features optimized sound quality with minimal low end roll off due to high permeability steel utilization. The SKR series of transformerless volume controls offers the widest frequency response of any volume control on the market today with virtually no high or low end roll off resulting in audiophile sound quality. Other features include two ounce double-sided G10 glass epoxy PCBs, a non-shorting design utilizing a "make before break" switch which prevents the amplifier from ever seeing a dead short and 12-14 gauge solderless speaker terminals with easy top termination. Every volume control includes a color coded knob and mounting screws.
Warning: California's Proposition 65
Warning:
This product can expose you to chemicals, including vinyl chloride, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
- Volume Control Type: 150W Resistor Based Slider Style
- Power Handling: 150W Peak; 75W RMS Per Channel
- Frequency Response: 20Hz - 20kHz (–3dB, +0)
- Insertion Loss: 0.5 dB
- Impedance: 8 Ohms
- Total Attenuation: 36 dB (Max)
- Steps: 11 (Make Before Break)
- Resistor Based, NOT Impedance-Matching!
- Wiring Requirement: Up to 14 Gauge Wire
- Removable Input and Output "Quick Connect" Phoenix Connectors
- Fits in a Standard Single Gang Box - See LV1 for Mounting Bracket
- Unit Dimensions: (L x H x D) 1.62" x 2.5" x 2.5"
- What's Included: White, Ivory and Almond Plates, Inserts, Screws, and Slider
- Warranty: 5 Years
View Owner's Manual
